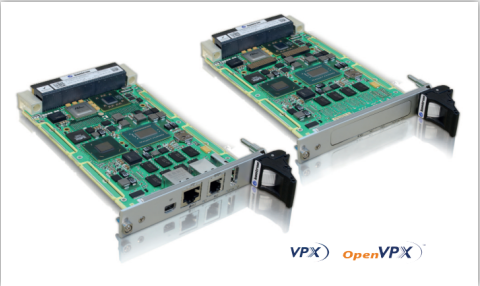

RVS3042 3U VPX intel i7-3517 UE 单板计算机
系统功能框图
.png)
英特尔酷睿第三代i7-3517 UE双核处理器
2路10G/1G以太网路
16G ECC SDRAM
32G 焊接SATA NAND Flash
经久耐用
航空航天
国防军工
轨道交通
电力通讯
| Processor |
Third Generation Intel® Core™ i7 processor (22-nanometer silicon technology):
» Intel® Core™ i7-3517UE Processor (4M cache, 2 execution cores, 4 threads)
» Dual Core, user configurable TDP 25W/2.2 GHz, 17W/1.7 GHz, 14W/0.8 GHz
» Integrated Graphics Core, Intel® HD graphics 4000
|
|---|---|
| Onboard Controller | |
| Platform Controller Hub |
Mobile Intel® QM77 Express Chipset:
» Up to 6 Gb/s integrated Serial ATA host controllers
» USB 2.0 & 3.0 host interface
|
| Graphics |
Integrated Graphics Core, Intel® HD graphics 4000
Up to 3 simultaneous graphics heads:
» One mini DisplayPort on front panel
» Two DisplayPorts available on VPX backplane.
|
| Gigabit Ethernet |
» One i82599 10/1 Gigabit Controller connecting two SerDes links (10GBASE-KR or 1000BASE-BX) on VPX backplane
» 10GBASE-KR links can be used for backplane board interconnect and/or for SFP+rear cage according SFI
specification (redriver recommended)
» One i82579 PHY connected on front panel or VPX backplane (user selection) for 1000BASE-T operation
|
| Watchdog | PLD-based, timeout ranging from 2 µs to 510s, IRQ, Reset, dual-stage |
| System CPLD |
One CPLD Board controller for power sequencing, reset handling, monitoring, failure detection, VPX I2C communication.
Provides configuration/status registers on LPC interface
|
| RTC | Separated low power RTC with optional onboard battery |
| SIO | SIO1028 provides two serial lines |
| Memory | |
| System Memory | Up to 16 GB dual channel DDR3 SDRAM running at 1333 MHz, with ECC, soldered |
| Flash (uEFI BIOS) | 8 MB FLASH, with recovery image and uEFI BIOS settings |
|
EEPROM
|
One serial 256 Kbit EEPROM dedicated to system data
One serial 256 Kbit EEPROM dedicated to application data
|
| NAND Flash Option | Up to 32 GB SATA Nand Flash storage |
|
Front Interfaces 4HP
(0,8") or 5HP (1")
|
|
|
Graphics
|
1x mini DisplayPort connector |
| USB | 1x USB 2.0 ports, 4-pin standard USB connectors |
|
Gigabit Ethernet
|
1x RJ-45 connectors: Ethernet 1000BASE-T
Note: This port is configurable from the BIOS to be routed to the VPX P1 connector instead of the front connector
|
|
Serial
|
1x RJ12 connector: EIA-232/EIA-485 UART interface for CPU |
| LEDs | 5 LEDs reporting the board CPU health status and activity |
| Reset |
Reset push button
|
| Onboard Interfaces | |
| CPU Debug Interface |
XDP port for CPU extended debug port connection (only available on a debug connector and need additional test board for
XDP access)
|
|
XMC Slot
|
One 8x PCIe to the XMC slot, x8d VITA 46.9 XMC I/O routing, plus 4 single ended pins
|
|
VPX Interface
|
|
| Slot Profiles |
SLT3-PAY-2F2U-14.2.3
SLT3-PAY-1F1F2U-14.2.4
SLT3-PAY-1F1U-14.2.10
|
| Rear I/O via P0/P1/P2 |
The VX3042 supports:
» 1 x8 gen3 PCIe, non transparent capability, on P1
1x1 additional PCIe interface, gen2, on P2
» 2 SATA 3 links on P1
2 additional SATA 2 links on P2
» 2 USB 2.0 and 1 USB 3.0 links on P1
2 additional USB 2.0 links on P2
» 2 SerDes 10GBASE-KR, SFP+/SFI or 1000BASE-BX on P1
» 1 1000BASE-T on P1, optional 2nd 1000BASE-T on P2
» 3 User GPIOs on P1, including OpenVPX GDISCRETE1, and MASKABLE RESET and 3 additional GPIOs on P0
» 2 DisplayPort on P2
|
| Supervisory Functions |
» Non Maskable RESET,
» NVMRO, SMB 0 and SMB 1 interfaces for Status, Start , Reset. Compatible with Kontron CMB (Monitoring Board),
temperature and voltage sensors on the board
» PCIe optional use of common reference clock feature
|
| Power Supplies | On P0: VS1=12V, VS3=5V, 3.3V_AUX optional, +12V_AUX and VS2 (3.3V) not connected |
