COMe-mBT10 嵌入式计算机模块
COMe Mini modules with a 84x55 mm footprint and pin-out types 10
软件支持
Windows® 8
Windows® 7
WE8S
WES 7
WEC7
Linux
·VxWorks

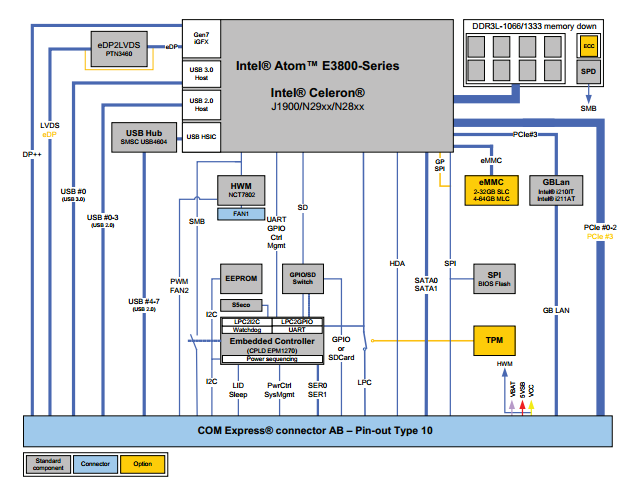

系统功能框图
Intel® Atom™ E3800 & Celeron® Series
Up to 8GB DDR3L memory down (ECC optional)
Up to 8x USB 2.0, 1x USB 3.0, eMMC Flash, 2x SATA, SD-Card
Industrial Grade Temperature
国防军工
航空航天
轨道交通
医疗设备
| 尺寸： | 84x55mm |
|---|---|
| 处理器： |
Intel® Atom™ E3845,
Intel® Atom™ E3827,
Intel® Atom™ E3826,
Intel® Atom™ E3825,
Intel® Atom™ E3815,
Intel® Celeron® J1900,
Intel® Celeron® N2920,
Intel® Celeron® N2930,
Intel® Celeron® N2807
|
| 芯片组： | - |
| 主内存： | Up to 8GB DDR3L-1333 memory down (ECC optional) |
| 显卡 | Intel® HD Graphics (Gen7) |
| 网络芯片 | Intel® I210IT / I211AT |
| 以太网： | 10/100/1000MbitLAN |
| 硬盘接口： | 2x SATA 3Gb/s |
| 板载闪存： | 2 - 64GB eMMC |
| USB接口： | 1x USB 3.0 (incl. USB 2.0), 3x USB 2.0 from CPU, 4x USB 2.0 from HSIC Hub |
| PCIe | 3x PCIe x1 |
| 串口： | 2x serial interface (RX/TX only) |
| 音频： | Intel® High Definition Audio |
| 基本特点 | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC, MARS |
| BIOS |
Phoenix Secure Core UEFI
|
| 湿度： | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
| 可选项： |
1x PCIe x1 additional w/o onboard LAN, Trusted Platform Module TPM 1.2, ECC memory,
eMMC Flash onboard (2-32GB SLC, 4-64GB MLC), eDP instead of LVDS,
General Purpose SPI instead of Boot SPI, FSP + Coreboot, AES-NI
|
| 电源控制： | ACPI, S5 Eco |
| 电源： | 4.75V – 20V Wide Range, Single Supply Power |
| 特有功能： | POSCAP capacitors, GPIO/SDIO Switch, General Purpose SPI optional |
| 温度： |
商用温度: 0°C to +60°C operating, -30°C to +85°C non-operating 扩展温度: -25°C to +75°C operating, -30°C to +85°C non-operating 工业温度: -40°C to +85°C operating, -40°C to +85°C non-operating |
