COMe-bIP6/bIP2嵌入式计算机模块
COM Express Modules with pin-out type6 and type2
软件支持
Windows® 8
Windows® 7
WES 7
WinXP, XPe
Linux
Vxworks
VxWorks

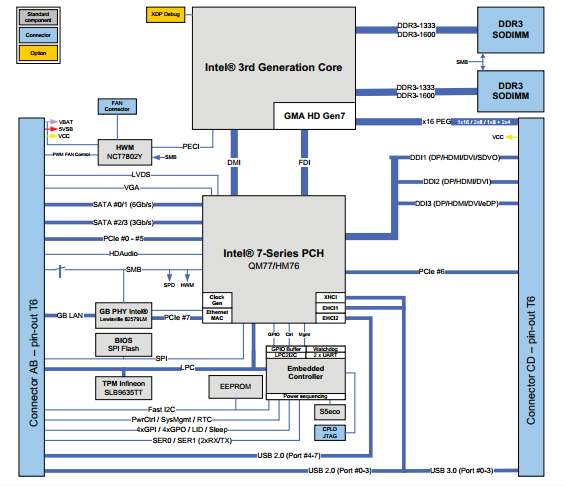

系统功能框图
Intel® 3rd Generation Core™ i7/i5/i3/Celeron Series with QM77/HM76 PCH
With non-ECC DDR3 up to 16GB
Triple Independent Display support
国防军工
航空航天
轨道交通
医疗设备
尺寸: | 125 x 95mm |
---|---|
处理器: |
Intel® Core™ i7-3615QE,i7-3612QE, Intel® Core™ i7-3555LE, Intel® Core™ i7-3517UE, Intel® Core™ i5-3610ME, Intel® Core™ i3-3120ME, Intel® Core™ i3-3217UE, Intel® Celeron® 1020E, Intel® Celeron® 1047UE, Intel® Celeron® 927UE |
芯片组: | Intel® Mobile QM77 (Core™ i3, i5, i7), Intel® Mobile HM76 (Celeron®) |
主内存: | 2x DDR3-1600 SO-DIMM up to 2x8GB |
以太网: | 10/100/1000 MBit Ethernet |
硬盘接口: | 2x SATA 6Gb/s, 2x SATA 3Gb/s |
PCI Express® / PCI support: | 1x PEG x16, 7x PCIe x1 |
USB接口: | 2x USB 3.0 + 6x USB 2.0 |
串口: | 2x serial interface (RX/TX only) |
音频: | Intel® High Definition Audio |
其他: | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC, MARS |
BIOS: | AMI Aptio UEFI |
湿度: | 93%relativeHumidityat40°C,non-condensing(accordingtoIEC60068-2-78) |
可选项: | 1x PCIe x1 additional w/o onboard LANvPRO (AMT/TXT/AES Support) |
电源: | 8.5V – 20V Wide Range, Single Supply Power |
特有功能: | POSCAP capacitors, Trusted Platfom Module TPM 1.2, eDP enabling by external Strap Option |
温度: |
Commercial temperature: 0°C to +60°C operating, -30°C to +85°C non-operating 扩展温度: -25°C to +75°C operating, -30°C to +85°C non-operating |
备注:上述参数COMe-bIP6 嵌入式计算机模块 参数
如需下载更多产品资料,请联系客服
